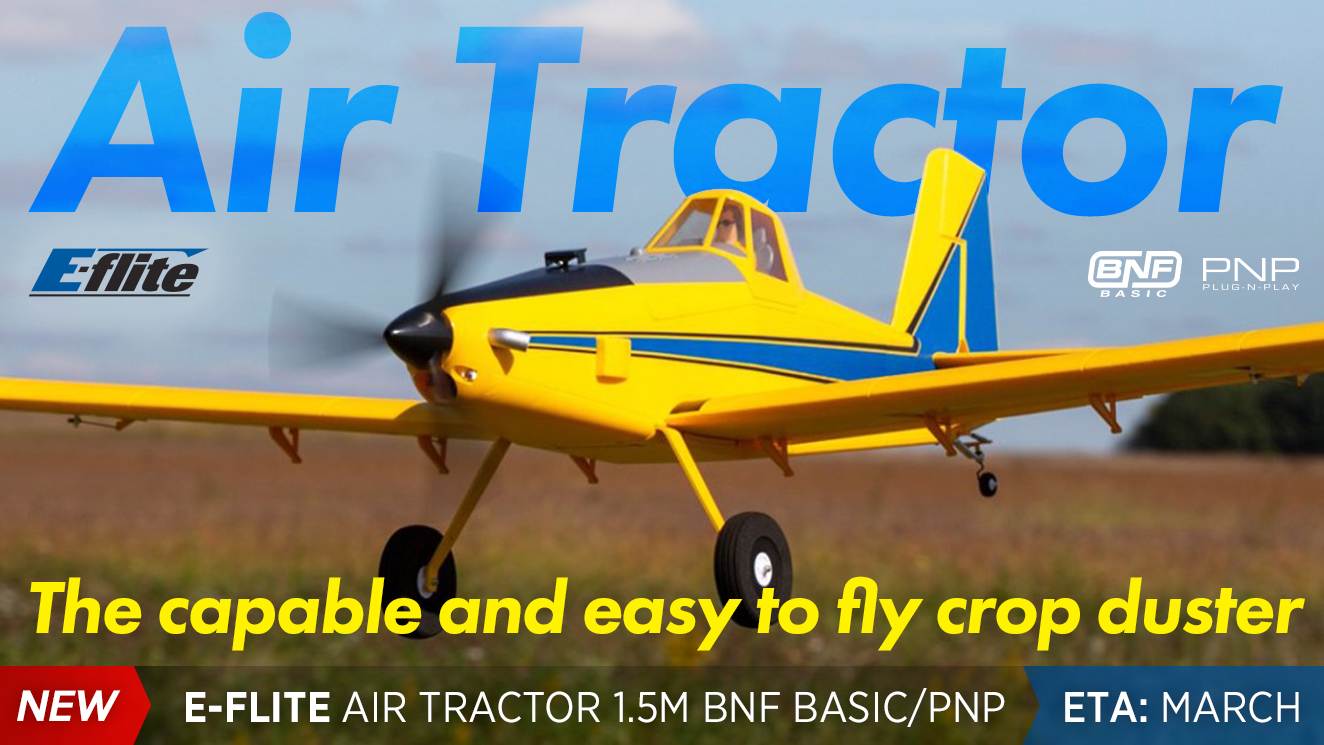

E-Flite Air Tractor 1.5m PNP EFL16475
Horizon Hobby Foam Frenzy offer available from 26 April - 23rd May 2022
The World's Ag Plane
Founded in 1978, Texas-based Air Tractor is a leading manufacturer of aircraft built for agricultural, firefighting and other utility applications. Air Tractor aircraft can be found hard at work over fields and forests in more than 30 countries around the world. The AT-500 series of ag airplanes first flew in the U.S. on April 25th, 1986. Since then, it has grown into one of the world's most popular families of general aviation, single-turboprop driven aircraft used for crop dusting, firefighting and other applications. Factory-finished in the familiar, high-visibility yellow and blue trim scheme with molded-in panel lines, rivets and more, the E-flite® Air Tractor 1.5m model offers a superb scale appearance you'll be proud to show off everywhere you go. It's also outfitted with functional features including LED navigation and landing lights, slotted flaps and oversized tires, plus it's capable yet easy to fly making it an ideal choice for your first — or next — scale or low-wing airplane.
Features
- Scale replica of the agricultural "crop dusting" utility aircraft including molded-in panel lines, rivets and more
- Easy to take off, fly and land, making it a perfect choice for a first scale or low-wing model
- Short Take Off and Landing (STOL) plus scale, sport and aerobatic flight capabilities
- High-power 3S and 4S compatible 50A ESC and outrunner motor with 3-blade prop
- Functional slotted flaps for shorter takeoffs/landings and improved slow-speed handling
- Durable, factory-installed metal-geared servos with adjustable linkages on the primary control surfaces
- Robust landing gear with oversized tires for operation from a variety of surfaces
- Optional EDO-style floats with steerable rudders (sold separately)
- Optional scale-like skis for flying from snow (sold separately)
- Functional and factory-installed LED landing, navigation and strobe lights
- Factory-painted and finished in a scale, high-visibility trim scheme
- Lightweight yet durable composite-reinforced EPO construction
- Fast and easy bolt-together assembly – no glue required
- Easy to install/remove two-piece wing and stab
Capable And Easy To Fly
Air Tractor ag and utility airplanes have earned a reputation for friendly handling, incredible capabilities and unmatched versatility. Those qualities carry over to this E-flite® Air Tractor 1.5m scale replica to make it a perfect scale low-wing model for intermediate to experienced RC pilots. The specially-tuned motor and 3-blade prop are matched to a 50-amp ESC to provide fantastic scale and sport aerobatic flight performance with 3S 2200-3200mAh LiPo batteries, or you can install a 4S battery for more power and unlimited vertical without the need for any modifications or upgrades. Functional slotted flaps improve slow speed handling while also offering Short Take Off and Landing (STOL) capabilities. Robust landing gear and wheels with oversized tires allow the Air Tractor to fly from paved, grass, dirt, gravel or other surfaces at any suitably-sized park or RC flying field. Add large ponds or small lakes to your possible flying sites by installing optional floats (EFL5261, sold separately) — or attach the optional scale-like skis (EFLA970, also sold separately) to take off from and land on snow. The factory-applied paint and decal finish provides excellent visibility along with striking scale looks that are accented by LED navigation, strobe and landing lights. The E-flite® Air Tractor 1.5m delivers a unique flying experience that a wide range of pilots will enjoy, even if it's your first scale or low-wing model.
Needed to Complete
Full-range 5+ channel transmitter and receiver
3S 11.1V or 4S 14.8V 2200–3200mAh LiPo with EC3™ or IC3™ Connector
Compatible LiPo charger
What's in the Box?
(1) E-flite® Air Tractor 1.5m with:
(1) 50A Brushless ESC (installed)
(1) Brushless Outrunner Motor (installed)
(4) Micro Metal-Geared Servos (installed)
(2) Micro Servos (installed)
(1) Product Manual
Versatile Gear Options
Thick grass, gravel paths, dirt trails; you can fly from these and many other surfaces that are impossible for most models of this size to handle. The robust landing gear is equipped with wheels and oversized tires that soak up the bumps of rough surfaces and provide excellent prop clearance. The optional float set (EFL5261, sold separately) features dual water rudders for superb steering control when flying from lakes and ponds. And the optional, scale-like ski set (EFLA970, sold separately) makes it possible to fly from snow or wet grass.
High Power
The factory-installed brushless power system features a 50-amp ESC plus a specially-tuned motor and 3-blade prop that deliver an abundance of thrust with a 3S 2200-3200mAh LiPo battery, or more power and unlimited vertical performance with a 4S battery without the need for any modifications or upgrades.
Very Durable
Composite-reinforced, hollow-core construction with EPO material delivers a lightweight yet durable airframe. Plus the Air Tractor is equipped with durable and reliable metal-geared servos on all the primary control surfaces.
LED Lights
The Air Tractor comes with realistic-looking LED landing, navigation and strobe lights that are factory-installed and powered from the flight battery.
Easy Assembly
No glue is required for assembly, and because the few parts that need to be assembled easily bolt or snap into place, the Air Tractor can be ready to fly in less time than it takes to charge the flight battery. The two-piece wing and stab also makes transport and storage as convenient as possible.
Scale Trim Scheme
The factory-applied paint and decal finish offers excellent visibility plus a scale look you'll be proud to show off everywhere you go.
Plug-N-Play® Completion Level
This Plug-N-Play (PNP) model comes out of the box with a factory-installed power system and servos that are ready to connect to the compatible receiver of your choice (sold separately). Simply install the receiver, finish any final assembly, and fly!
Specifications
| Airfoil Shape: | Flat bottom |
| CG (Center of Gravity): | 2.5" (65mm) +/- 5mm back from leading edge of wing |
| Charger: | Sold separately |
| Completion Level: | Plug-N-Play |
| Control Throw (Flaps): | .4" (10mm) / .8" (20mm) |
| Control Throw - High (Ailerons): | .86" (22mm) |
| Control Throw - High (Elevator): | .4" (10mm) |
| Control Throw - High (Rudder): | .43" (11mm) |
| Control Throw - Low (Ailerons): | .63" (16mm) |
| Control Throw - Low (Elevator): | .27" (7mm) |
| Control Throw - Low (Rudder): | .32" (8mm) |
| Expo (Ailerons): | Low Rate 5%, High Rate 15% |
| Expo (Elevator): | Low Rate 5%, High Rate 10% |
| Expo (Rudder): | Low Rate 5%, High Rate 10% |
| Flaps: | Slotted for improved low-speed handling |
| Flying Weight: | 59 - 62oz (1681 - 1766g) |
| Length: | 38.5" (977.9mm) |
| Minimum Required Radio: | 6-ch (sold separately) |
| Minimum Speed Control: | 50A |
| Motor Size: | 10 size brushless outrunner |
| Propeller Size: | 11x7.5 3-blade |
| Receiver: | (sold separately) |
| Recommended Motor Battery: | 2200 - 3200mAh 3S - 4S (sold separately) |
| Servos: | Four micro metal gear, two micro |
| Transmitter Range: | Full |
| Trim Scheme Colors: | Yellow and blue |
| Wing Area: | 472 sq in (30.5 sq dm) |
| Wing Loading: | 18.2sq in (1.17 sq dm) |
| Wingspan: | 59 in (1499 mm) |
