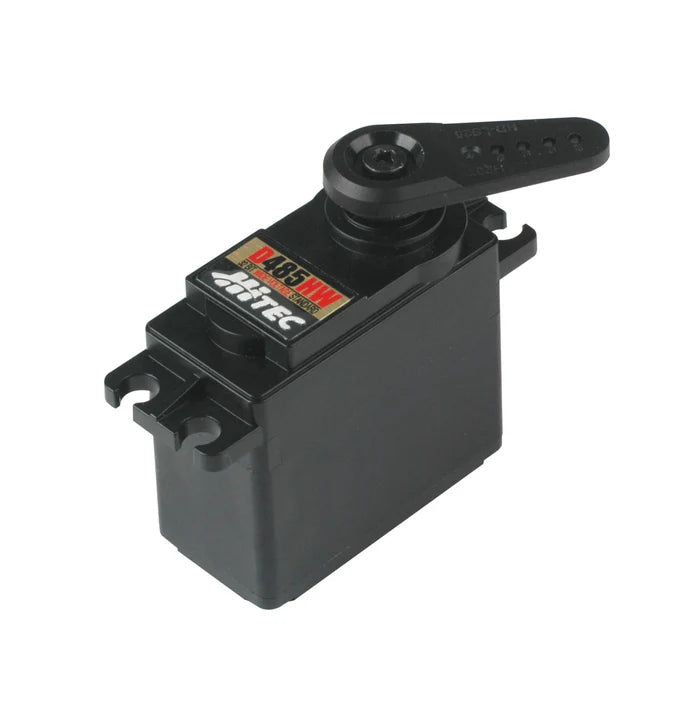

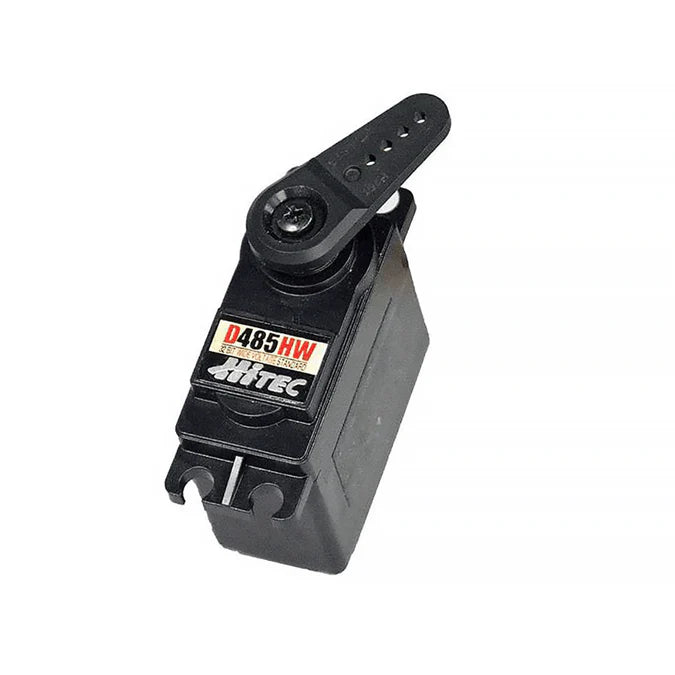

Hitec D485HW Wide Voltage Standard Servo 2221030
Replacing the standard-size HS-5485HB and HS-5495BH servos, the sport class D485HW brings faster response and accuracy to your various radio control needs with D-series high resolution 32-bit technology and wide voltage operation.
This is the upgraded version of the HS-5485HB and HS-5495BH
D485HW Servo Specifications
Performance Specifications
Spline 25 Tooth Futaba Arms
Operating Voltage Range (Volts DC) 4.8V ~ 7.4V
Speed (Second @ 60°) 0.20 ~ 0.15
Maximum Torque Range oz. / in. 72 ~ 104
Maximum Torque Range kg. / cm. 4.8 ~ 7.4
Current Draw at Idle 30 mA
No Load Operating Current Draw 320mA
Stall Current Draw 1,500mA
Dead Band Width N / A

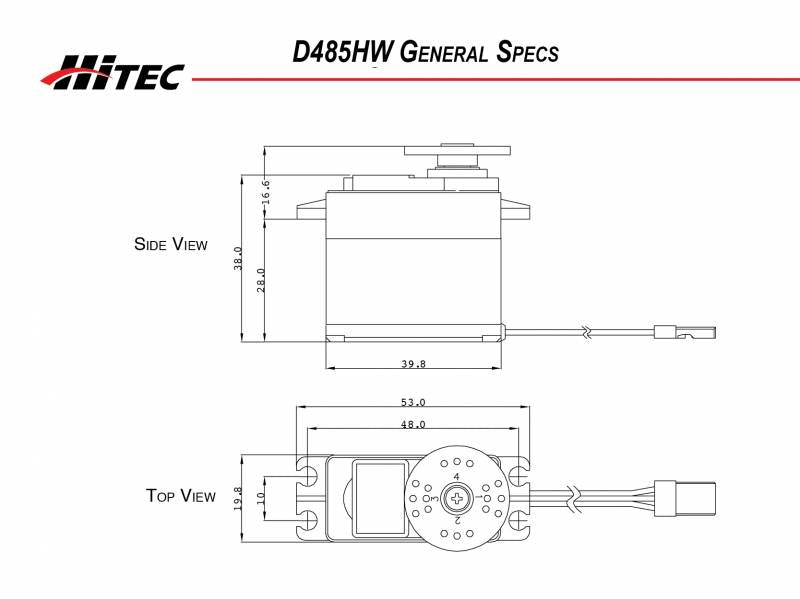

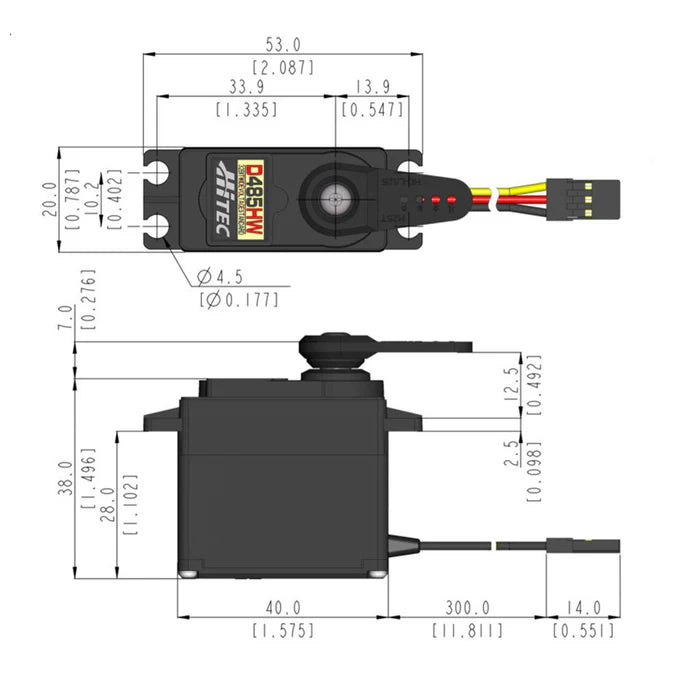

Physical Specifications
Dimensions (Inches) 1.57 x 0.78 x 1.49
Dimensions (Metric) 39.8 X 19.8 X 38.0
Weight (Ounces) 1.59
Weight (Gram) 45.0
Circuit Type 32 bit Programmable Digital
Motor Type 3 Pole Cored Carbon Brush
Gear Material MK 1st Gear & 3 Karbonite
Resin Gears
Bearing Type Top Ball Bearing
Output Shaft (type / Ømm) 25 / 6
Case Material Plastic
Radio Control Applications
Sport Plane 50 - 64 oz.
Sailplane 2 meters and up
Scale 50 - 64 oz
Sail Boat < 1M
Power Boat 1/10th
