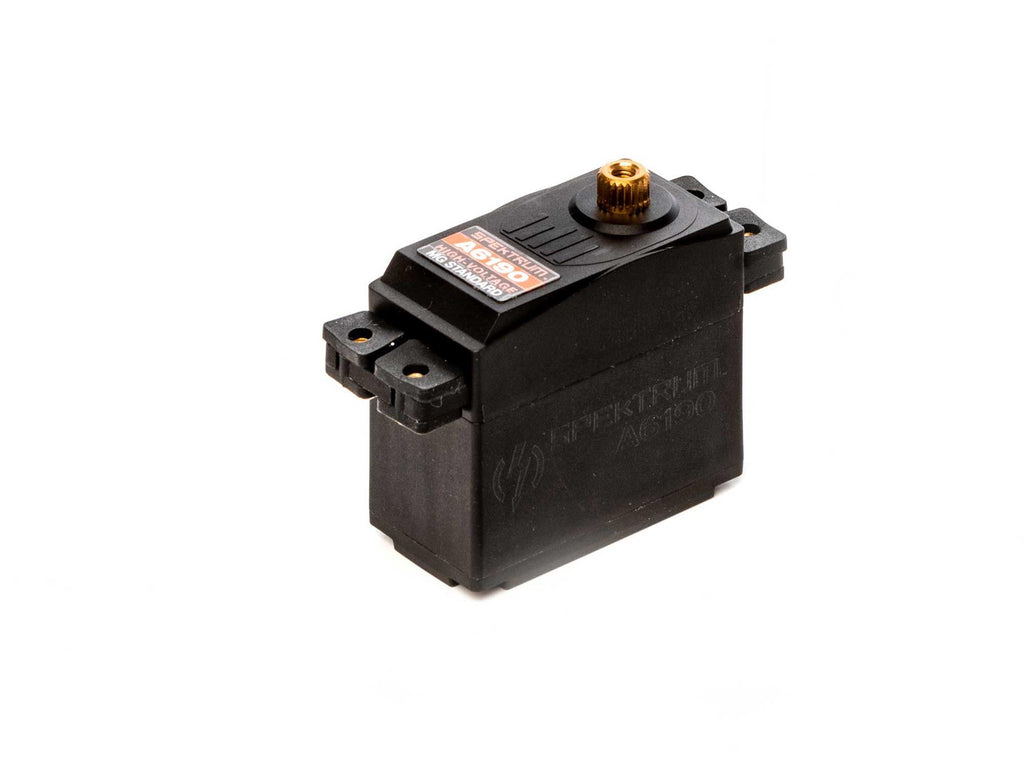

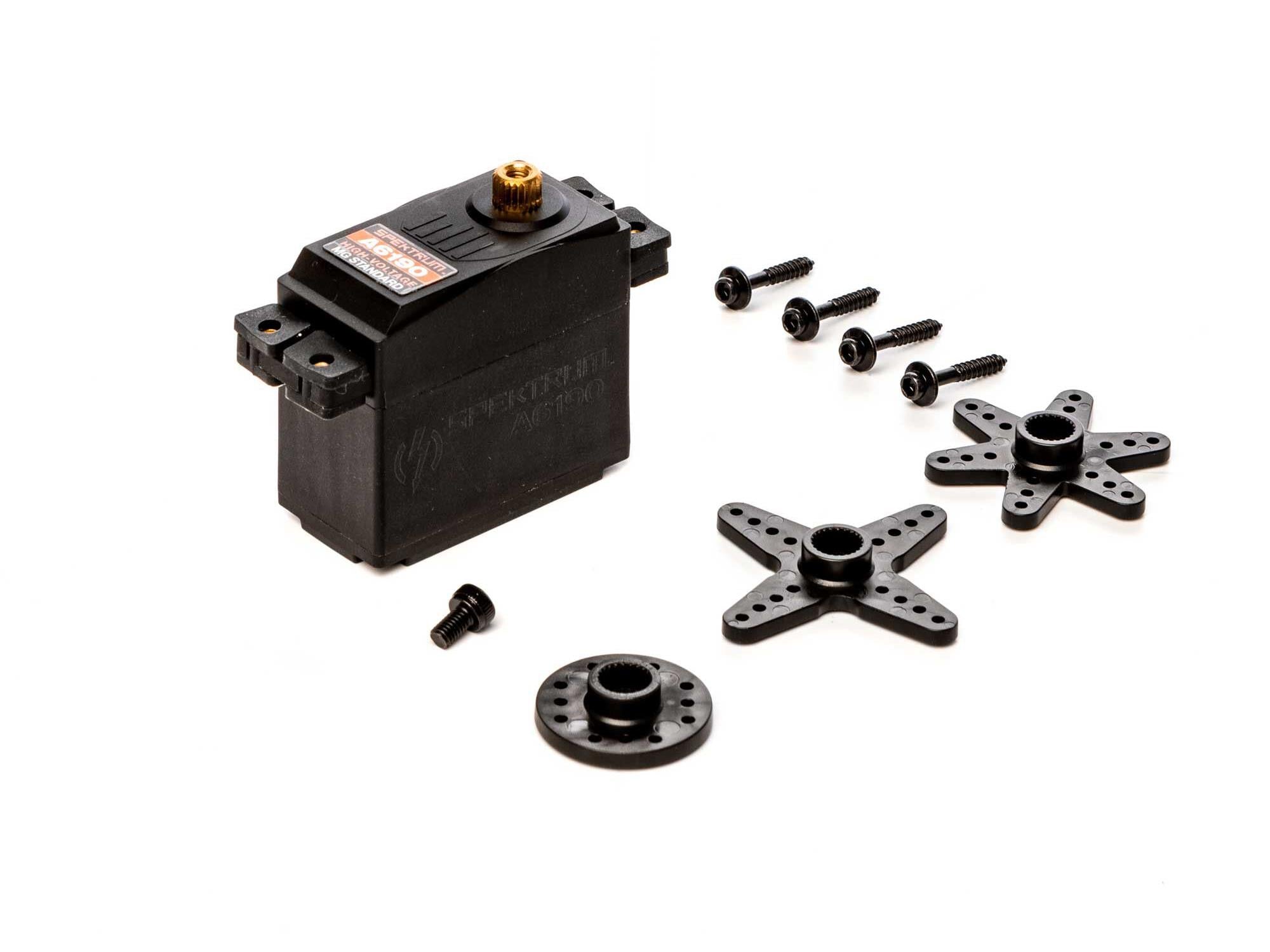

Spektrum A6190 Standard Metal Gear HV Aircraft Servo SPMSA6190
The Spektrum A6190 Metal Gear High Voltage Digital servo offers impressive performance for pilots looking for an excellent value standard size servo for their Sport and Trainer aircraft. High voltage capable, the A6190 can produce 8.3kg-cm (115 in-oz) of torque at 0.17 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a 5-pole ferrite motor and is supported by dual ball bearings for smooth operation. It also features low deadband and precise position control. Like all Spektrum servos, the A6190 delivers reliability, consistency and performance that are second to none.
Features
- High Voltage (HV) capable (4.8-8.4v input range)
- Perfectly suited for sport and trainer type model aircraft requiring standard size servos
- Excellent performance and value for its class (8.3kg-cm and .17 sec/60° @8.4v)
- Low wear and tightly meshed all metal gear train
- Dual bearing supported drive train helps maximize smooth operation
- Operating Frequency: 200hz to 333hz
Specifications
| Servo Size Category |
Standard |
| Maximum Servo Torque |
90 oz-in (6.48kg-cm) @ 6.0V; 98 oz-in (7kg-cm) @ 7.4V; 115 oz-in (8.3kg-cm) @ 8.4V |
| Deadband |
<1µs |
| Input Voltage |
4.8V-8.4V |

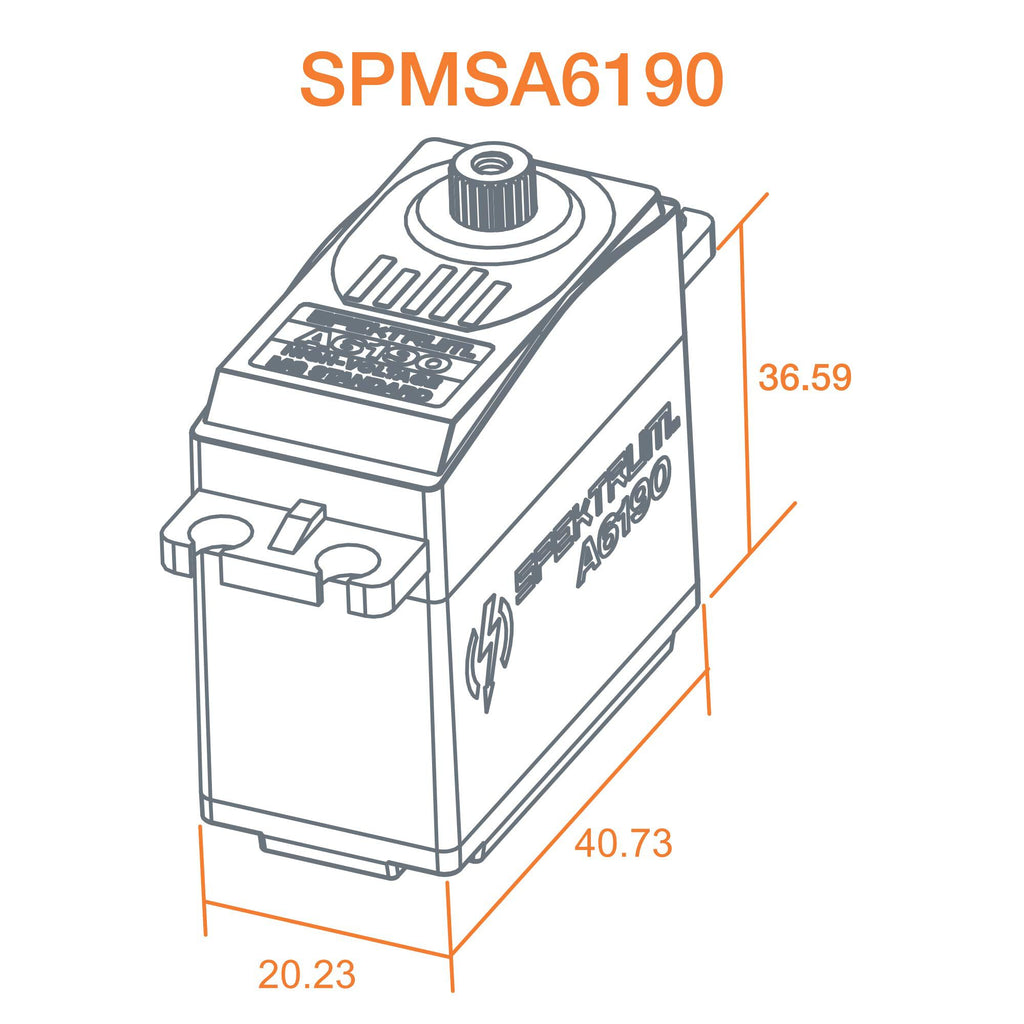

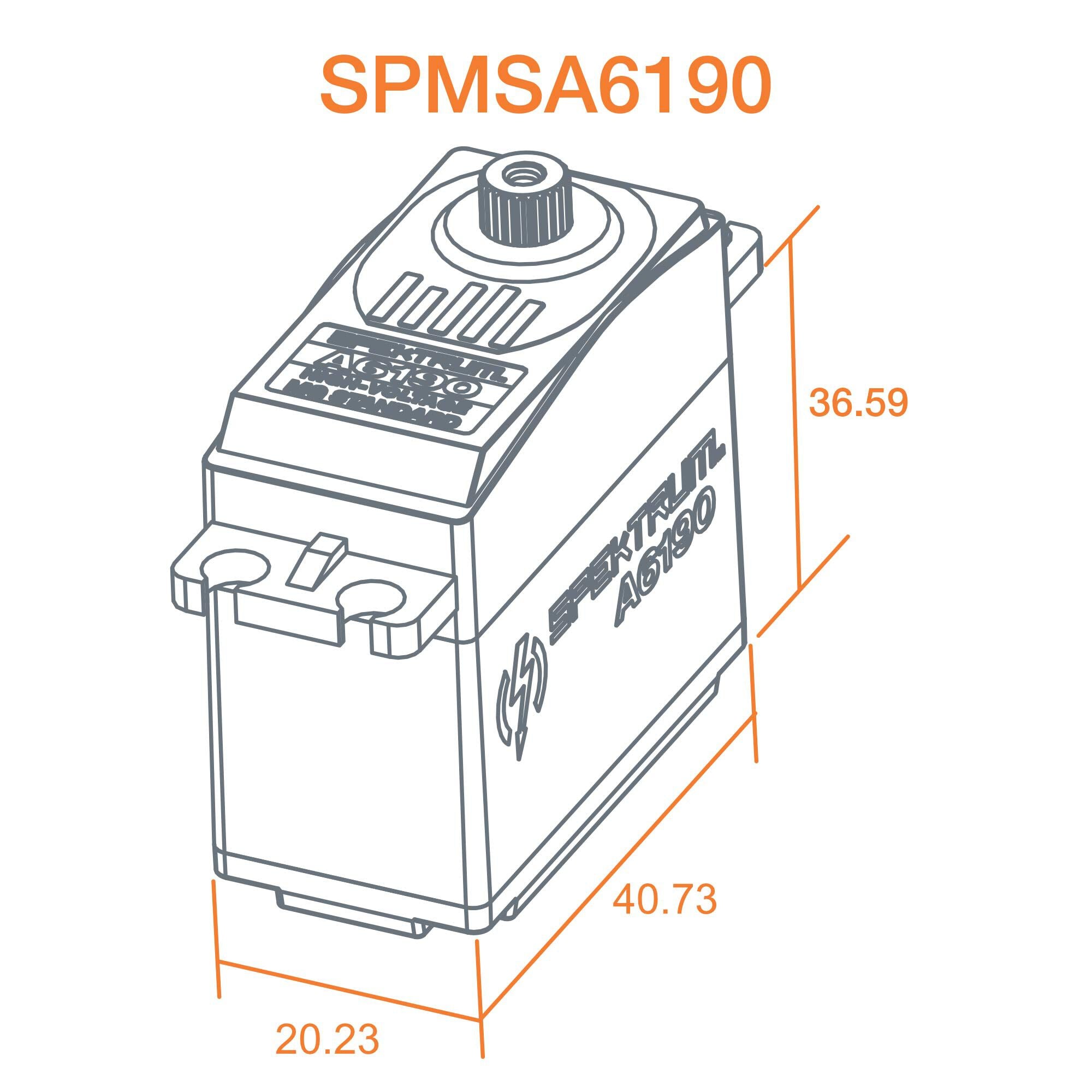

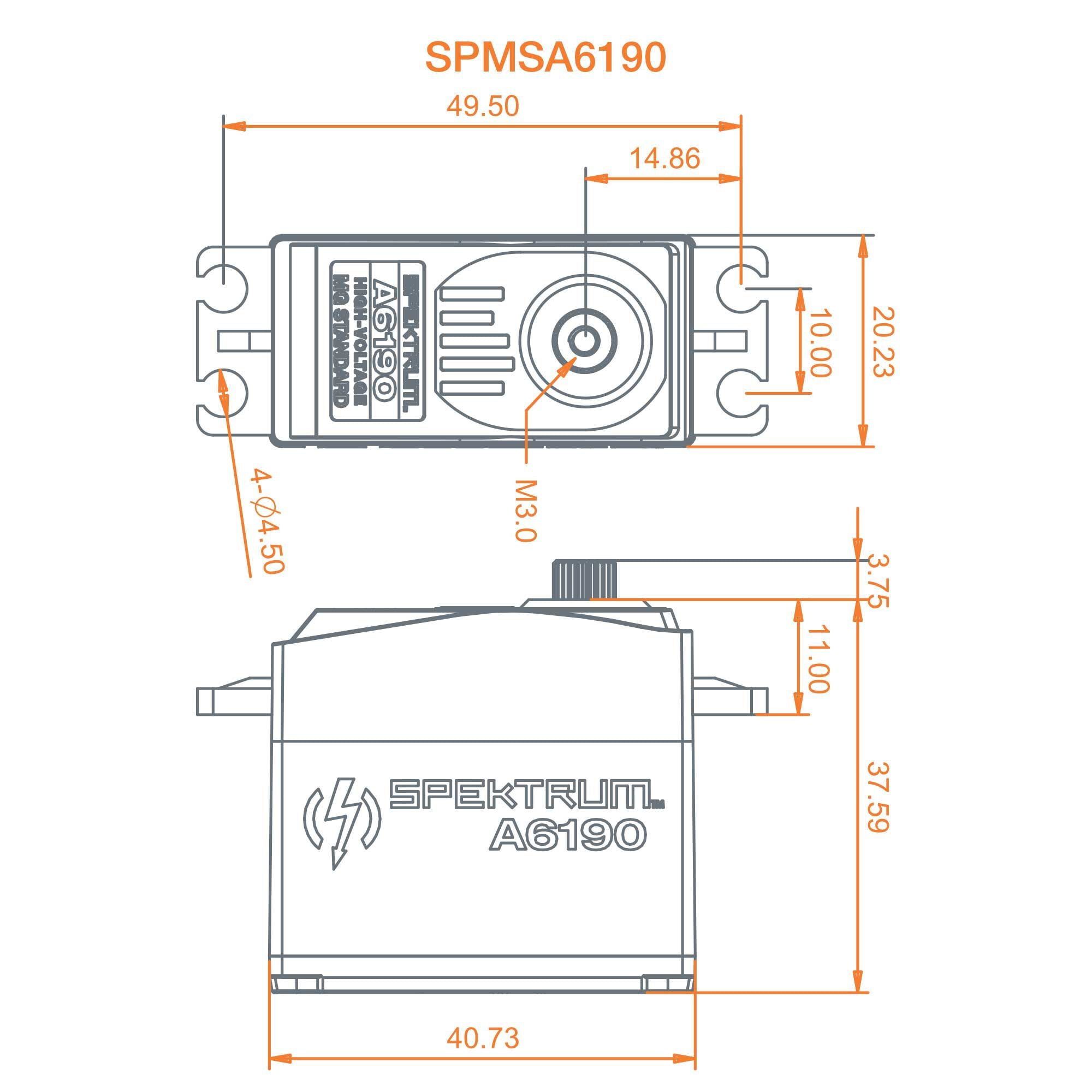

| Product Height |
1.58" (40 mm) |
| Servo Type |
Digital |
| Spline Count |
23 - Tooth |
| Overload Protection |
No |
| Product Weight |
1.9 oz (54g) |
| Max Servo Torque |
40-99 oz-in |
| Bearing |
Dual BB |
| Bushing Or Bearing |
Bearing |
| Gear Type |
Metal |
| Maximum Servo Speed |
0.22 sec/60 deg @ 6.0V; 0.17 sec/60 deg @ 7.4V; 0.13 sec/60 deg @ 8.4V |
| Product Length |
1.47" (37 mm) |
| Servo Operating Voltage |
4.8 - 8.4V (HV) |
| Product Width |
0.78" (20 mm) |
| Programmable |
No |
