Pilot RC Viper 2.2M Composite Jet (Retract Version) PIL457
Features
- Full Composite Construction
- Aluminium Tube for Wings/Stabliser Spar
- Two Piece Wing/Stabliser

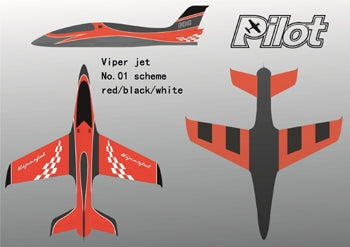

- External Painted Scheme
- Removable Wing/Stabliser/Vertical Fin
- Fuel Tank and Fuel Tube Included
- Pre-Installed Gear Door
- Hardware Included
- Dual Wall Tail Pipe for 8-14Kg Turbine Included
- Scale Cockpit (Without Pilot)
- High Quality Air Trap (UAT) Included
- Fuel Dot and Fuel Tank Vent with Start up Overflow Fitting Included
- One Servo for Each Flap, One Servo for Each Aileron, One Servo for Rudder, One Servo for Each Elevator, One Servo for Nose Wheel. Use Standard Size Servos
- Three Servos for Gear Door. Use Medium Size Servo
- Strong Electric Retract Landing Gear with Electric Brake
- Optional Navigation LED Lights with Programmer and Wiring (Available Separately)
Setting
Aileron: 20mm, Rudder: 25mm, Elevator: 20mm, Flap: 35mm for Take Off and 65mm for Landing.
The CG is 158mm from the front leading edge on the root of the wing.
Specifications
| Wingspan: |
86.6in (2.2M) |
| Wing Area: |
- |
| Fuselage Length: |
78.7in (2.0M) |
| Weight: |
10.8Kg |
| Engine: |
8-14Kg Thrust Turbine |
