UniLight 2x4W Flat Light Double in GREEN FLAT-040-2xGN

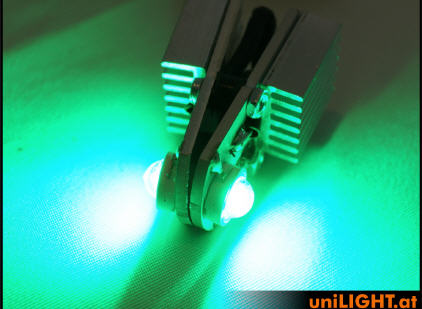

Two flat recessed light for direct mounting behind existing glazing on thin wings or tail units. Optimal light output on the top and bottom side. The waste heat on the mounting level is dissipated on a special aluminium core PCB, which is why these lights only have a 7mm headroom.
The scope of delivery contains two optionally useable, self-adhesive heatsinks and mounting screws. For longer operation time, the heatsinks can be placed underneath or above, depending on the space available.

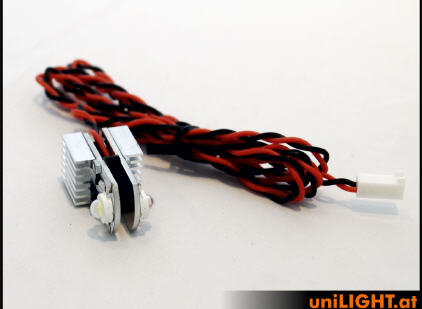

The lights are wired ready for operation and can be mounted in different distances with accessories provided.
Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. With the delivered heatsink, these lamps are suitable for normal operation from 5 to 10 minutes when paying attention to a slight air flow. Please check operation temperatures after installation and ensure sufficient air cooling.
Technical Data
Electricity: 2x4W reference power, 8(12)V, 0.35A
Beam angle: ~160°
Light intensity: ~2x50 Lumen RED
Light intensity: ~2x70 Lumen GREEN
Light intensity: ~2x100 Lumen WHITE
Dimension flat light : 16x32x7mm
Dimension additional heatsink: 15x15x6mm, 2 items
Weight: 10g (without cable)

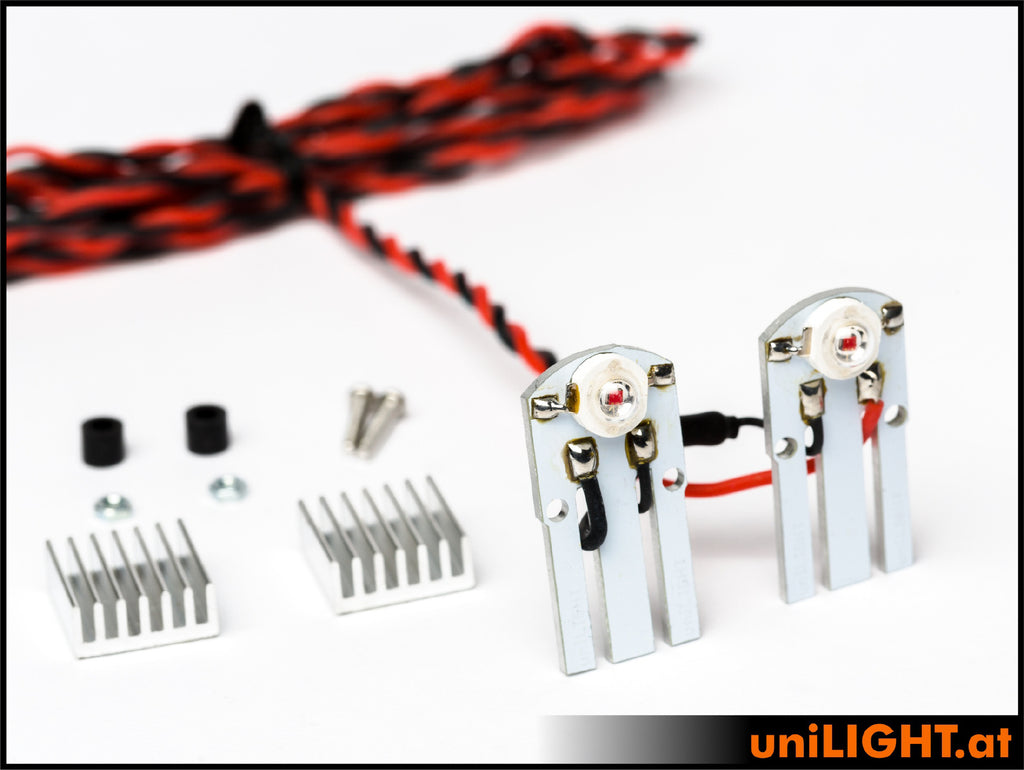

Delivery: ready to use with 1m connection cable and series resistor for 2S, resistor for 3S enclosed, 2 heatsinks, mounting screws and spacer
